Contents:
|
(R1) Hotspot AP

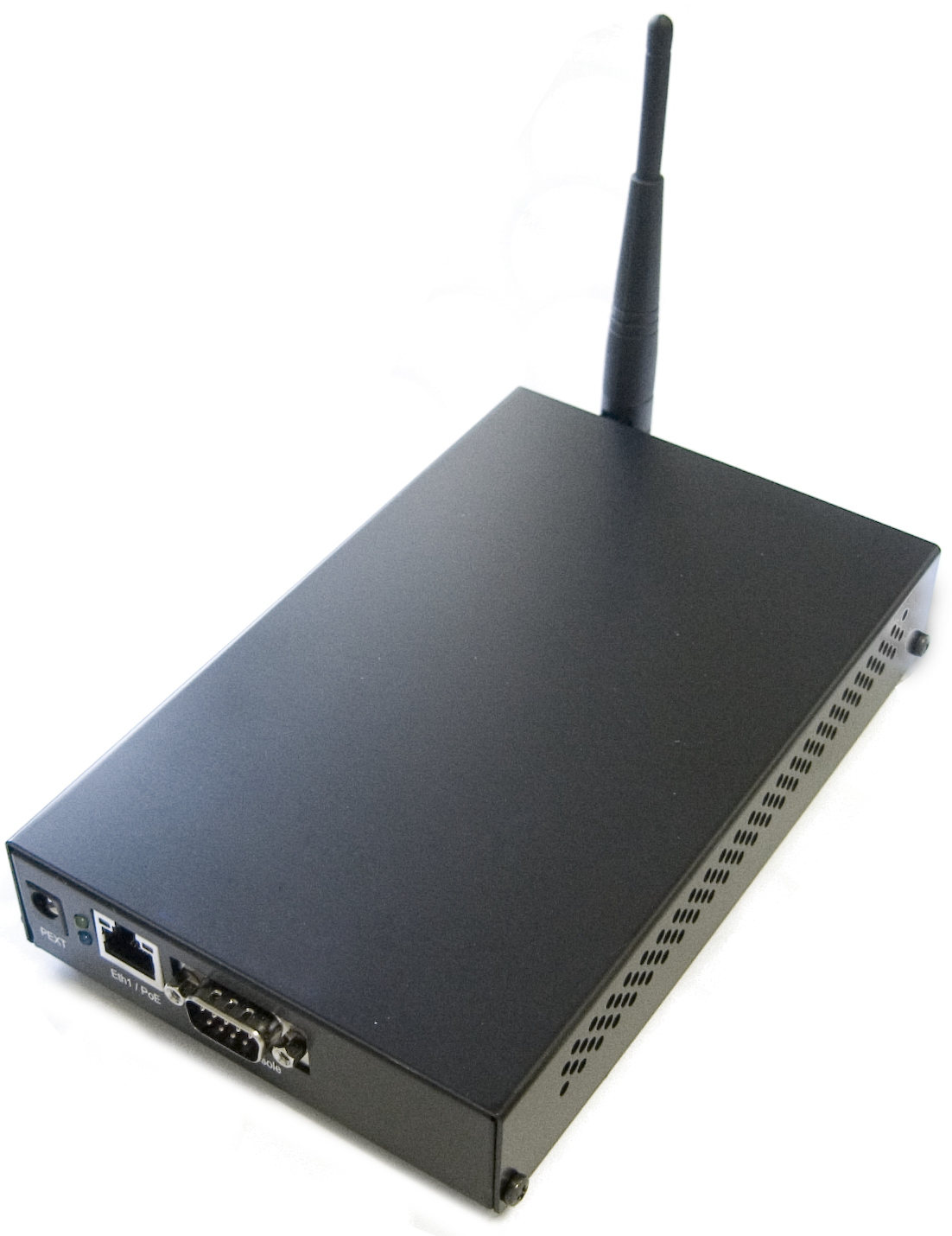

| | Equipped with Atheros CPU, 64MB RAM and RouterOS Level 4 license, RouterBOARD 411A can be used as Hotspot Access Point in Hotels, Airports, Apartment Buildings etc. You can use R52 (~65mW) or R52H (~350mW) wireless card, both of those support 2.4Ghz and 5Ghz range. |  | - List price for this unit is $151, ask your Distributor for quote!
- Parts list:
- RB/411A RouterBOARD 411 with RouterOS L4
- CA/411 Indoor case
- R52 wireless card
- 18POW power supply
- AC/SWI swivel antenna
| | |
(R2) Dual Nstreme unit
| | Powerful RouterBOARD 433AH, is perfect solution for high speed backbone
link. 680Mhz (800Mhz factory tested) Atheros CPU allows to achieve up
to 60-80Mbps on point-to-point, using MikroTik Nstreme protocol and pair
of R52 or R52H cards (supports both 2.4Ghz or 5Ghz). Unit has RouterOS
Level 5 license installed, that supports up to 500 simultaneous
Hotspot/PPPoE users -so you can use it also as Hotspot Gateway or PPPoE
server. No need for additional boxes! |  | - List price for this unit is $306 – ask your Distributor for quote!
- You
need two such devices (plus antennas and cabling) to make high-quality
Dual Nstreme link
-
Parts list:
-
RB/433AH RouterBOARD 433AH with RouterOS L5
- CA/433 Indoor case
- R52 wireless card x2pcs
- AC/UFL pigtail x2pcs
- 18POW power supply
- also available in outdoor case and with poe
| | |
(R3) Firewall/Traffic Control unit Standard

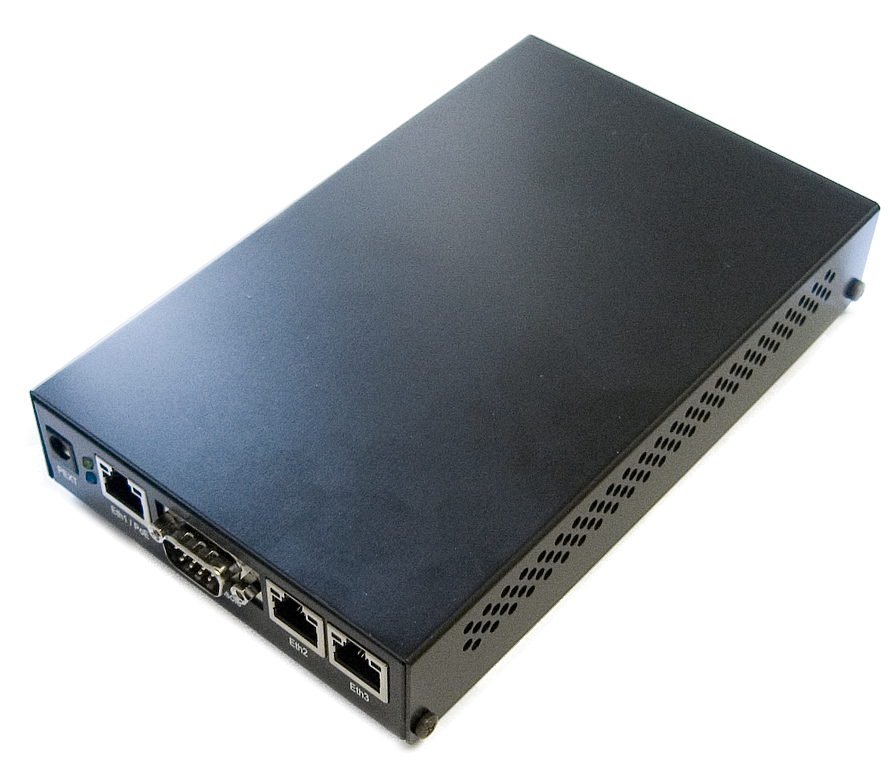

| | RouterBOARD 433 is nice low-cost solution for basic firewall/traffic
shaping needs. With list price below $130 (ask your Distributor for
quote), performance is still ~2-3 times better than classic RB532 based
units. Also, RouterOS L4 license and three miniPCI slots are onboard-
that means that you can insert up to three miniPCI wireless cards and
use unit as Hotspot AP, Backbone or CPE as well. |  | - Parts list:
- RB/433 RouterBOARD 433 with RouterOS L4
- CA/433 Indoor case
- 18POW power supply
| | |
(R4) Firewall/Traffic Control unit Advanced
| | Need more than RB433? RB/433AH has same layout of interfaces, but ~2-3
times faster CPU, so performance is even better. Also it's equipped with
RouterOS L5, that means support for up to 500 simultaneous PPPoE/Hotspot
connections- it's ideal solution for business class server. | | - List for this unit is $177 – ask your Distributor for quote!
- Parts list:
- RB/433AH RouterBOARD 433AH with RouterOS L5
- CA/433 Indoor case
- 18POW power supply
| | |
(RB1000U) Firewall/Traffic Control unit Professional

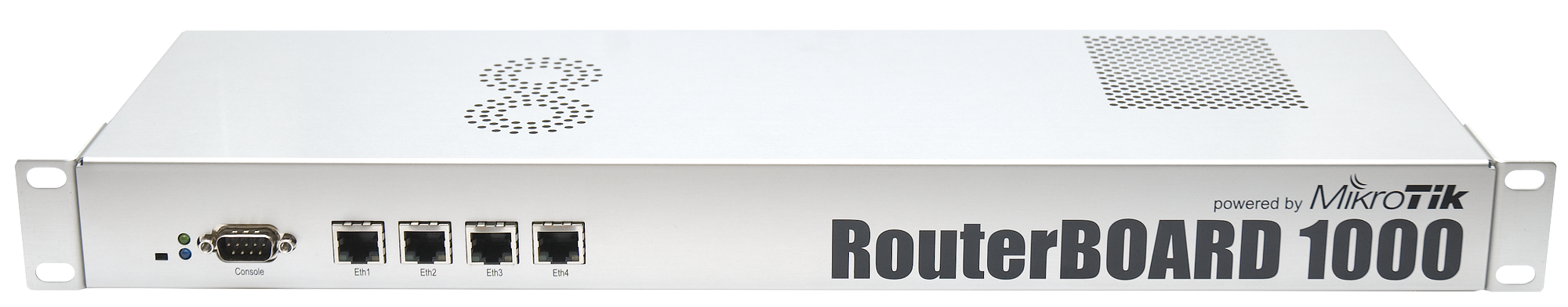

| | MikroTik proudly announces RB1000, our flagship RouterBOARD. Equipped
with high-speed Freescale CPU and four Gigabit Ethernet ports, it's not
just five-six times faster than RB433, but even faster than any x86 PCI
based PC - so you don't need to go to local computer store anymore to
assemble your core router. List price for RB/1000 unit with 1U Rackmount
case, power supply and RouterOS L6 license is only $695 now- you can
calculate by yourself, how much will it cost for you to build x86 based
Rackmount PC router with 4port Gigabit cards, that can do up to 3.2Gbps
full duplex ...
|  | | | |
|
|
