Routes, Equal Cost Multipath Routing, Policy Routing
|Document revision:||2.4 (September 7, 2007, 8:37 GMT)|
The following manual surveys the IP routes management, equal-cost multi-path (ECMP) routing technique, and policy-based routing.
SpecificationsPackages required: system
License required: Level1
Submenu level: /ip route
Standards and Technologies: IP (RFC 791)
Hardware usage: Not significant
MikroTik RouterOS has following types of routes:
- dynamic routes - automatically created routes for networks, which are directly accessed through an interface. They appear automatically, when adding a new IP address. Dynamic routes are also added by routing protocols.
- static routes - user-defined routes that specify the router which can forward traffic to the specified destination network. They are useful for specifying the default gateway. The gateway for static routes may be checked (with either ARP or ICMP protocol) for reachability, so that different gateways with different priorities (costs) may be assigned for one destination network to provide failover.
This routing mechanism enables packet routing along multiple paths with equal cost and ensures load balancing. With ECMP routing, you can use more than one gateway for one destination network (this approach may also be configured to provide failover). With ECMP, a router potentially has several available next hops towards a given destination. A new gateway is chosen for each new source/destination IP pair. It means that, for example, one FTP connection will use only one link, but new connection to a different server will use another link. ECMP routing has another good feature - single connection packets do not get reordered and therefore do not kill TCP performance.
The ECMP routes can be created by routing protocols (RIP or OSPF), or by adding a static route with multiple gateways, separated by a comma (e.g., /ip route add gateway=192.168.0.1,192.168.1.1). The routing protocols may create multipath dynamic routes with equal cost automatically, if the cost of the interfaces is adjusted propery. For more information on using routing protocols, please read the corresponding Manual.Policy-Based Routing
It is a routing approach where the next hop (gateway) for a packet is chosen, based on a policy, which is configured by the network administrator. In RouterOS the procedure the follwing:
- mark the desired packets, with a routing-mark
- choose a gateway for the marked packets
Note! In routing process, the router decides which route it will use to send out the packet. Afterwards, when the packet is masqueraded, its source address is taken from the prefsrc field.
RoutesSubmenu level: /ip route
In this submenu you can configure Static, Equal Cost Multi-Path and Policy-Based Routing and see the routes.
Property Descriptionbgp-as-path (text) - manual value of BGP's as-path for outgoing routebgp-atomic-aggregate (yes | no) - indication to receiver that it cannot "deaggregate" the prefixbgp-communities (multiple choice: integer) - administrative policy marker, that can travel through different autonomous systems
You can specify more than one or two gateways in the route. Moreover, you can repeat some routes in the list several times to do a kind of cost setting for gateways.
To add two static routes to networks 10.1.12.0/24 and 0.0.0.0/0 (the default destination address) on a router with two interfaces and two IP addresses:
[admin@MikroTik] ip route> add dst-address=10.1.12.0/24 gateway=192.168.0.253 [admin@MikroTik] ip route> add gateway=10.5.8.1 [admin@MikroTik] ip route> print Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme, B - blackhole, U - unreachable, P - prohibit # DST-ADDRESS PREF-SRC G GATEWAY DIS INTE... 0 A S 10.1.12.0/24 r 192.168.0.253 Local 1 ADC 10.5.8.0/24 Public 2 ADC 192.168.0.0/24 Local 3 A S 0.0.0.0/0 r 10.5.8.1 Public [admin@MikroTik] ip route>
Policy RulesSubmenu level: /ip route rule
Property Descriptionaction (drop | unreachable | lookup; default: unreachable) - action to be processed on packets matched by this rule:
unreachable - reply that destination host is unreachable
lookup - lookup route in given routing table
You can use policy routing even if you use masquerading on your private networks. The source address will be the same as it is in the local network. In previous versions of RouterOS the source address changed to 0.0.0.0
It is impossible to recognize peer-to-peer traffic from the first packet. Only already established connections can be matched. That also means that in case source NAT is treating Peer-to-Peer traffic differently from the regular traffic, Peer-to-Peer programs will not work (general application is policy-routing redirecting regular traffic through one interface and Peer-to-Peer traffic - through another). A known workaround for this problem is to solve it from the other side: making not Peer-to-Peer traffic to go through another gateway, but all other useful traffic go through another gateway. In other words, to specify what protocols (HTTP, DNS, POP3, etc.) will go through the gateway A, leaving all the rest (so Peer-to-Peer traffic also) to use the gateway B (it is not important, which gateway is which; it is only important to keep Peer-to-Peer together with all traffic except the specified protocols)
To add the rule specifying that all the packets from the 10.0.0.144 host should lookup the mt routing table:
[admin@MikroTik] ip firewall mangle add action=mark-routing new-routing-mark=mt \ \... chain=prerouting [admin@MikroTik] ip route> add gateway=10.0.0.254 routing-mark=mt [admin@MikroTik] ip route rule> add src-address=10.0.0.144/32 \ \... table=mt action=lookup [admin@MikroTik] ip route rule> print Flags: X - disabled, I - invalid 0 src-address=192.168.0.144/32 action=lookup table=mt [admin@MikroTik] ip route rule>
Static Equal Cost Multi-Path routing

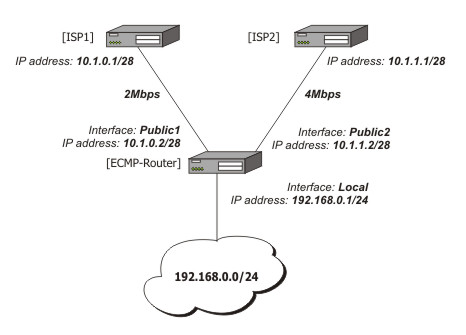

Consider the following situation where we have to route packets from the network 192.168.0.0/24 to 2 gateways - 10.1.0.1 and 10.1.1.1:
Note that the ISP1 gives us 2Mbps and ISP2 - 4Mbps so we want a traffic ratio 1:2 (1/3 of the source/destination IP pairs from 192.168.0.0/24 goes through ISP1, and 2/3 through ISP2).
IP addresses of the router:
[admin@ECMP-Router] ip address> print Flags: X - disabled, I - invalid, D - dynamic # ADDRESS NETWORK BROADCAST INTERFACE 0 192.168.0.254/24 192.168.0.0 192.168.0.255 Local 1 10.1.0.2/28 10.1.0.0 10.1.0.15 Public1 2 10.1.1.2/28 10.1.1.0 10.1.1.15 Public2 [admin@ECMP-Router] ip address>
Add the default routes - one for ISP1 and 2 for ISP2 so we can get the ratio 1:3:
[admin@ECMP-Router] ip route> add gateway=10.1.0.1,10.1.1.1,10.1.1.1 [admin@ECMP-Router] ip route> print Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf # DST-ADDRESS G GATEWAY DISTANCE INTERFACE 0 ADC 10.1.0.0/28 Public1 1 ADC 10.1.1.0/28 Public2 2 ADC 192.168.0.0/24 Local 3 A S 0.0.0.0/0 r 10.1.0.1 Public1 r 10.1.1.1 Public2 r 10.1.1.1 Public2 [admin@ECMP-Router] ip route>
Standard Policy-Based Routing with Failover

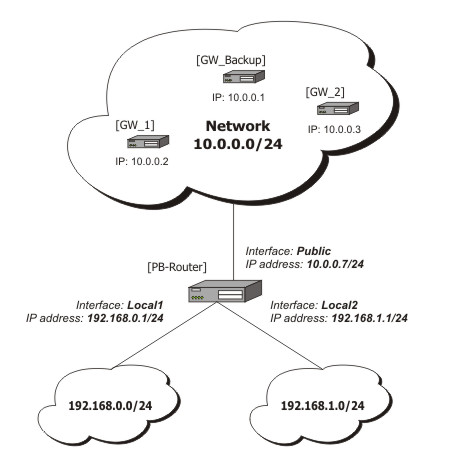

This example will show how to route packets, using an administrator defined policy. The policy for this setup is the following: route packets from the network 192.168.0.0/24, using gateway 10.0.0.1, and packets from network 192.168.1.0/24, using gateway 10.0.0.2. If GW_1 does not respond to pings, use GW_Backup for network 192.168.0.0/24, if GW_2 does not respond to pings, use GW_Backup also for network 192.168.1.0/24 instead of GW_2.
Configuration of the IP addresses:
[admin@PB-Router] ip address> print Flags: X - disabled, I - invalid, D - dynamic # ADDRESS NETWORK BROADCAST INTERFACE 0 192.168.0.1/24 192.168.0.0 192.168.0.255 Local1 1 192.168.1.1/24 192.168.1.0 192.168.1.255 Local2 2 10.0.0.7/24 10.0.0.0 10.0.0.255 Public [admin@PB-Router] ip address>
To achieve the described result, follow these configuration steps:
Mark packets from network 192.168.0.0/24 with a new-routing-mark=net1, and packets from network 192.168.1.0/24 with a new-routing-mark=net2:
[admin@PB-Router] ip firewall mangle> add src-address=192.168.0.0/24 \ \... action=mark-routing new-routing-mark=net1 chain=prerouting [admin@PB-Router] ip firewall mangle> add src-address=192.168.1.0/24 \ \... action=mark-routing new-routing-mark=net2 chain=prerouting [admin@PB-Router] ip firewall mangle> print Flags: X - disabled, I - invalid, D - dynamic 0 chain=prerouting src-address=192.168.0.0/24 action=mark-routing new-routing-mark=net1 1 chain=prerouting src-address=192.168.1.0/24 action=mark-routing new-routing-mark=net2 [admin@PB-Router] ip firewall mangle>
Route packets from network 192.168.0.0/24 to gateway GW_1 (10.0.0.2), packets from network 192.168.1.0/24 to gateway GW_2 (10.0.0.3), using the according packet marks. If GW_1 or GW_2 fails (does not reply to pings), route the respective packets to GW_Main (10.0.0.1):
[admin@PB-Router] ip route> add gateway=10.0.0.2 routing-mark=net1 \ \... check-gateway=ping [admin@PB-Router] ip route> add gateway=10.0.0.3 routing-mark=net2 \ \... check-gateway=ping [admin@PB-Router] ip route> add gateway=10.0.0.1 [admin@PB-Router] ip route> print Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf # DST-ADDRESS PREFSRC G GATEWAY DISTANCE INTERFACE 0 ADC 10.0.0.0/24 10.0.0.7 Public 1 ADC 192.168.0.0/24 192.168.0.1 Local1 2 ADC 192.168.1.0/24 192.168.1.1 Local2 3 A S 0.0.0.0/0 r 10.0.0.2 Public 4 A S 0.0.0.0/0 r 10.0.0.3 Public 5 A S 0.0.0.0/0 r 10.0.0.1 Public [admin@PB-Router] ip route>
