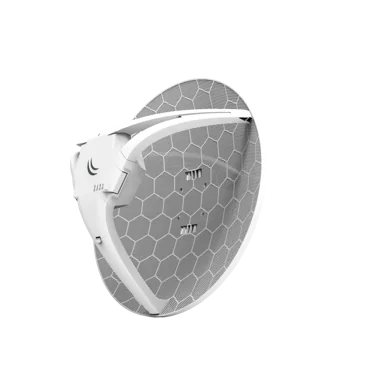

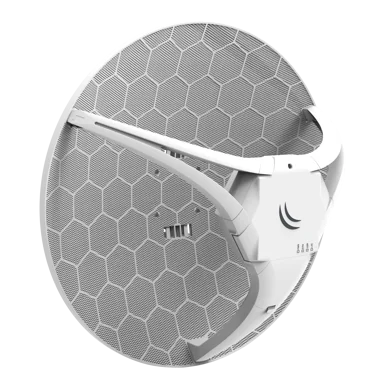

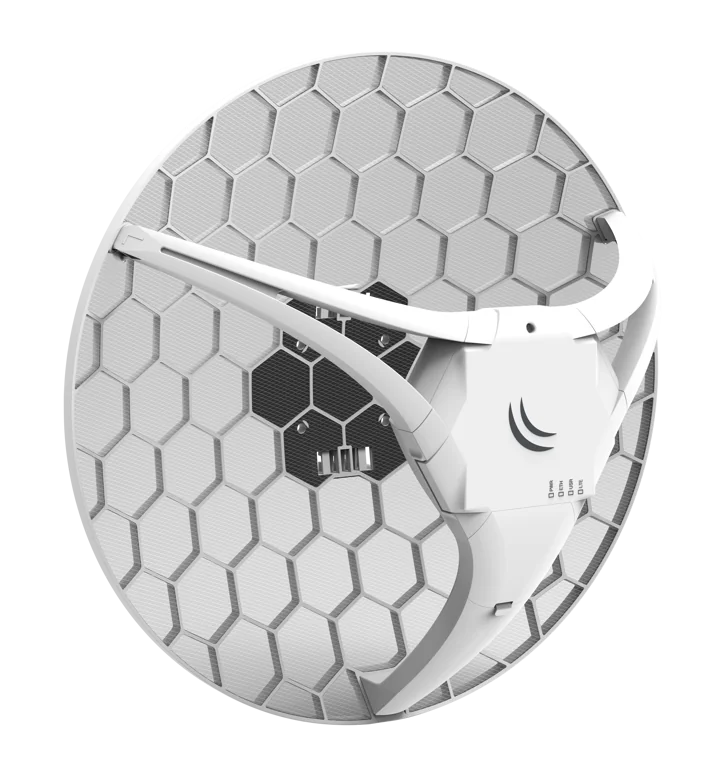

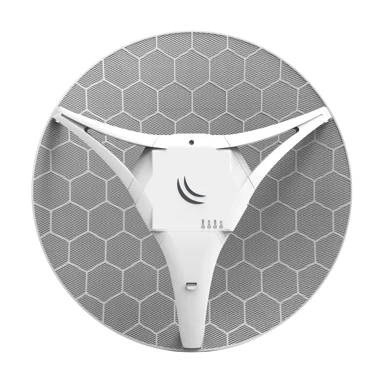

    LHG R High gain 21dBI LTE antenna for very remote areas, WITHOUT LTE modem

    The LHG R is an integrated high gain 21dBi LTE antenna WITHOUT LTE modem (free miniPCI-e slot). In the case, if for any reason you don't want to use one of our own LTE modems, you can simply buy the LHG R and install the modem of your choice*.

    Unit is designed, for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

    *) the device has no built in LTE modem, the SIM slot can only be used, if an LTE modem is installed (not included with the product).

    *Check our supported peripherals HERE

     Send purchase questions

    Specifications

    Details
    Product code RBLHGR
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    RouterOS license 3
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 60°C
    Suggested price $119.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 6 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V

    Ethernet

    Details
    10/100 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Micro SIM)
    MiniPCI-e slots 1

    Other

    Details
    Mode button Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

    Included parts

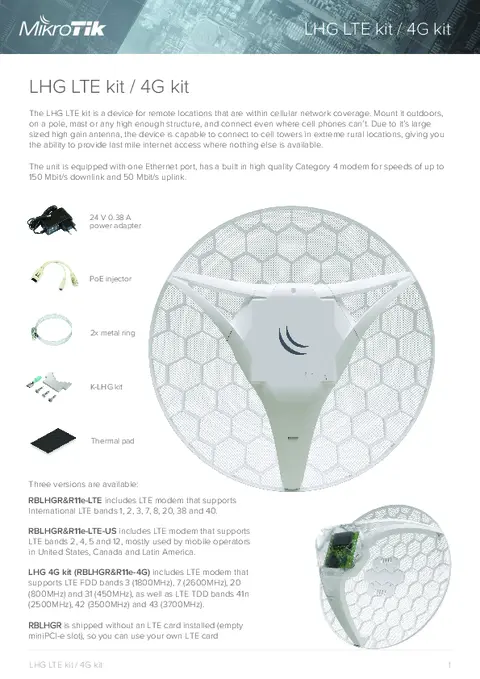

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #
    #

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
