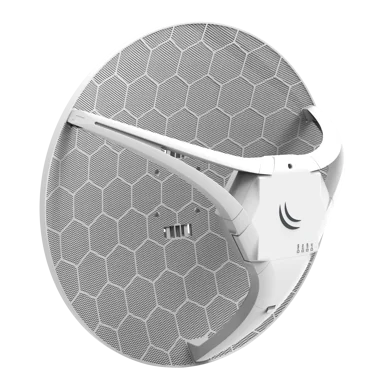

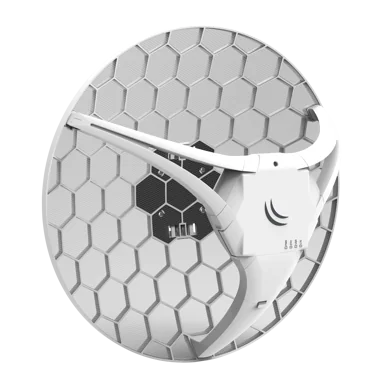

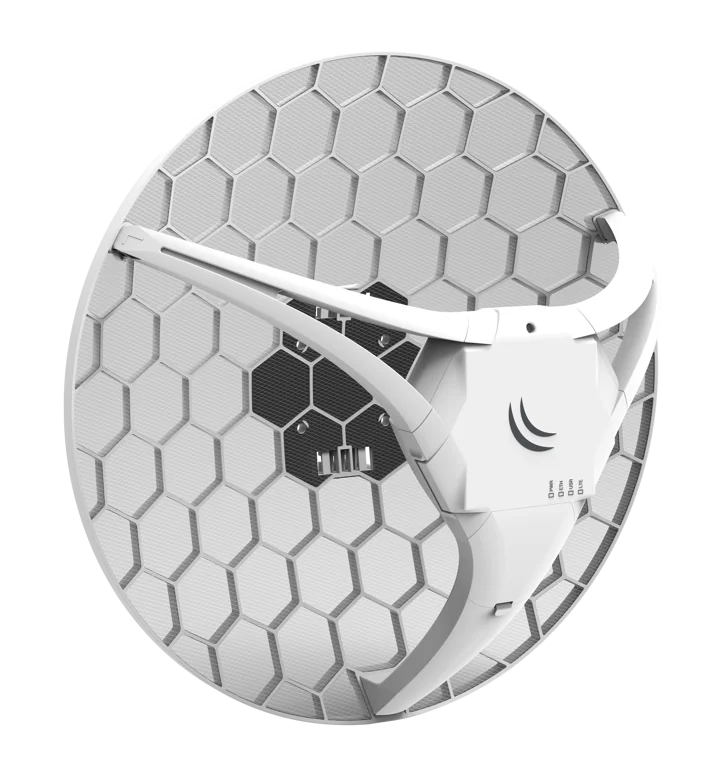

    LHG LTE kit-US LHG 3G/4G/LTE High gain 17dBI CPE for very remote areas, US bands

    Discontinued


    The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

    The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.

    RBLHGR&R11e-LTE-US includes LTE modem that supports LTE bands 2, 4, 5 and 12, mostly used by mobile operators in United States, Canada and Latin America.
     Send purchase questions

    Specifications

    Details
    Product code RBLHGR&R11e-LTE-US
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Dimensions 391 x 391 x 227 mm
    RouterOS license 3
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 60°C
    Suggested price $159.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 6 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V

    Mobile

    Details
    3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands 2 (1900MHz) / 5 (850MHz)
    LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
    LTE FDD bands 2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 12 (700MHz)
    TAC 35550909

    Ethernet

    Details
    10/100 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Micro SIM)
    MiniPCI-e slots 1

    Other

    Details
    Mode button Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (FCC)

    High resolution images

    #
    #
    #
    #

    Ethernet test results

    RBLHGR&R11e-LTE-USQCA9531 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.370.936.3
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.390.846.5
    Routing25 ip filter rules8.198.423.596.343.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
