    SXT SA5 14dBi integrated Sector AP, 90 degrees beamwidth, Gigabit Ethernet

    Discontinued

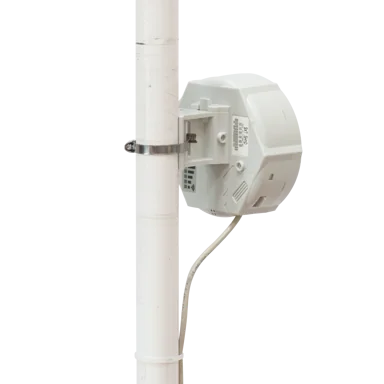

    SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point. It has a 90 degree antenna to provide a wider coverage than our previous SXT units.

    Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes. The inside of the case is covered in special shielding to improve operation in high interference areas and antenna front to back ratio.

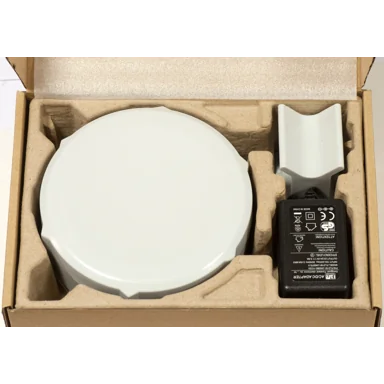

    Box contains: SXT wireless device with integrated antenna, pole mounting bracket, mounting ring, PoE injector, power adapter, quick setup guide

    - RBSXTG-5HPnD-SAr2-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RBSXTG-5HPnD-SAr2 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RBSXTG-5HPnD-SAr2
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions 140x140x56mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -30°C to 70°C
    Suggested price $99.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 11 W
    PoE in Passive PoE
    Cooling type Passive
    PoE in input Voltage 6-30 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 300 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n
    Antenna gain dBi for 5 GHz 14
    Wireless 5 GHz chip model AR9344
    Wireless 5 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s30-96
    54MBit/s27-80
    MCS030-95
    MCS726-73

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    RouterBoot firmware Download
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    #
    #
    #
    #
    #

    Ethernet test results

    RBSXTG-5HPnD-SAr2AR9344 1G 1 port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.0983.7232.0950.3269.6138.0
    Bridging25 bridge filter rules81.0983.786.0352.387.644.9
    Routingnone (fast path)81.0983.7210.0860.2226.9116.2
    Routing25 simple queues81.0983.7103.9425.6106.654.6
    Routing25 ip filter rules56.8689.859.6244.160.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
