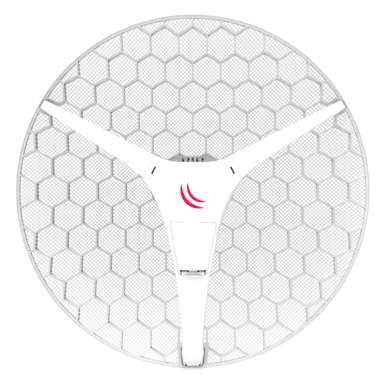

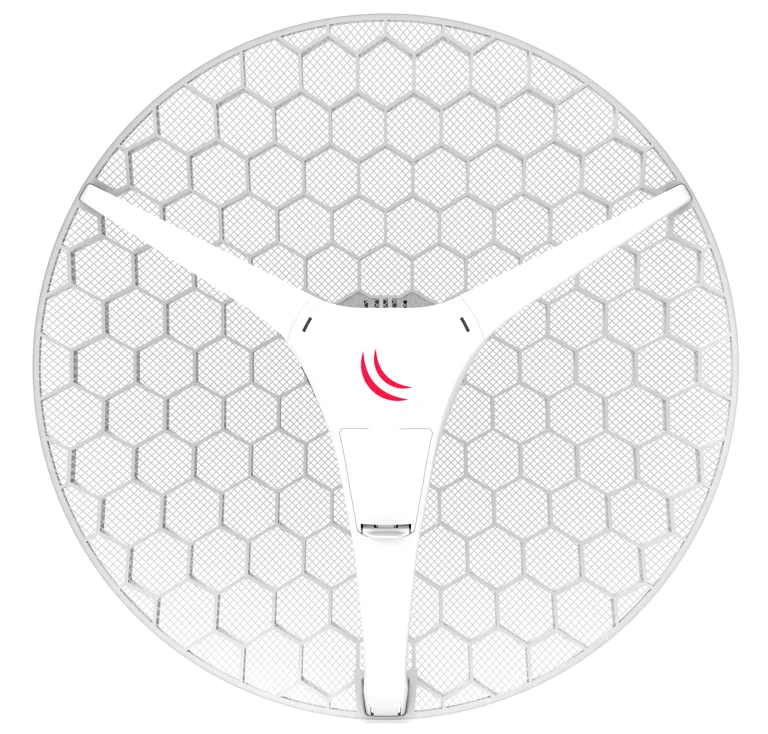

    LHG XL HP5 Dual chain eXtra Large High Power 27dBi 5GHz CPE/Point-to-Point Integrated Antenna

    The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.

    The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

    Shipped as a kit of 4 units (RBLHG-5HPnD-XL4pack) - 4 antennas in a single box

    We have two versions available.

    LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RBLHG-5HPnD-XL
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions Ø 550 x 245 mm;
    RouterOS license 3
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $89.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 7 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 10-28 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 300 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n
    Antenna gain dBi for 5 GHz 27
    Wireless 5 GHz chip model AR9344
    Wireless 5 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s28-96
    54MBit/s25-80
    MCS028-96
    MCS724-75

    Included parts

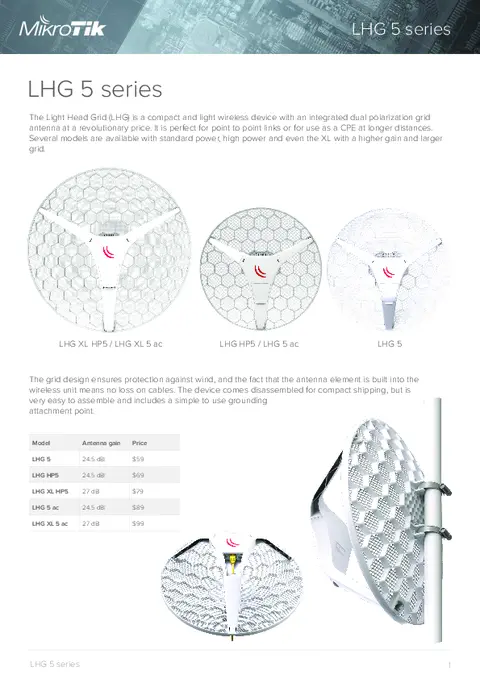

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (5GHz)Open

    High resolution images

    Ethernet test results

    RBLHG-5HPnD-XLAR9344 100M 1 port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3148.075.8
    Bridging25 bridge filter rules8.198.423.596.387.644.9
    Routingnone (fast path)8.198.423.596.3148.075.8
    Routing25 simple queues8.198.423.596.3106.654.6
    Routing25 ip filter rules8.198.423.596.360.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
