RB951Ui-2HnD

2.4GHz AP with five Ethernet ports and PoE output on port 5. It has a 600MHz CPU, 128MB RAM and a USB port.

PoE

RB951Ui-2HnD

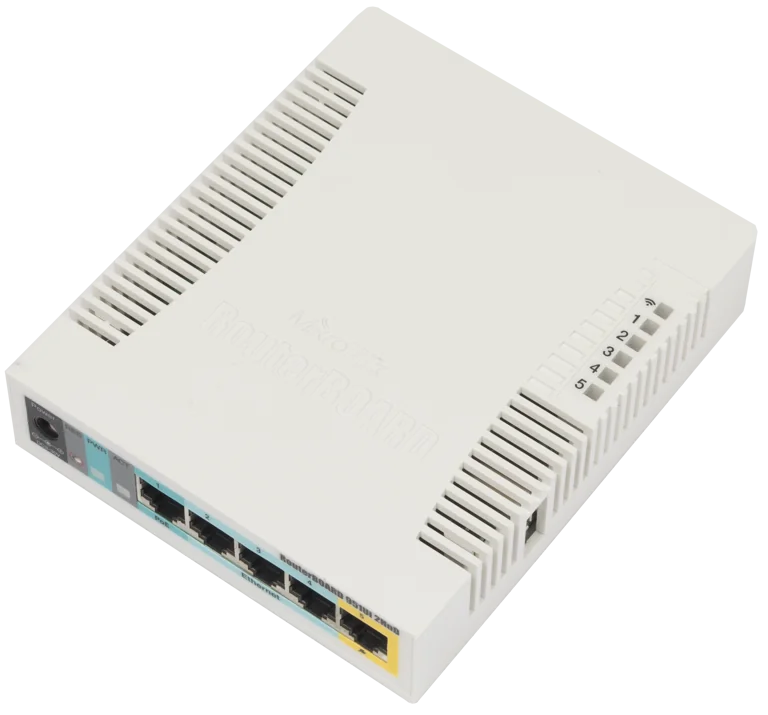

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

Specification

Specifications

Product code RB951Ui-2HnD
Suggested price $59.95
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 113x138x29mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20C +60C

Wireless capabilities

Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9344
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

10/100 Ethernet ports 5

Peripherals

Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 24 W
Max power consumption without attachments 7 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-30 V

PoE-out

PoE-out ports Ether5
PoE out Passive PoE
Low voltage PoE-Out current limit 500 mA
Max total out (A) 500 mA

Certification & Approvals

Certification CE, FCC, IC, EAC, ROHS
IP IP20

Other

Beeper Yes

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

2.4 GHz

Transmit (dBm)

Receive Sensitivity

6MBit/s

-96

54MBit/s

-80

MCS0

-96

MCS7

-78

RB951Ui-2HnD		AR9344 100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	40.0	485.8	116.5	477.2	269.6	138.0
Bridging	25 bridge filter rules	40.0	485.8	86.0	352.3	87.6	44.9
Routing	none (fast path)	40.0	485.8	116.5	477.2	226.9	116.2
Routing	25 simple queues	40.0	485.8	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	40.0	485.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
