    RB800 800MHz CPU, 256MB RAM, 3x Gigabit Ethernet, 4x miniPCI, miniPCI-express, daughterboard connector RouterOS L6

    Discontinued

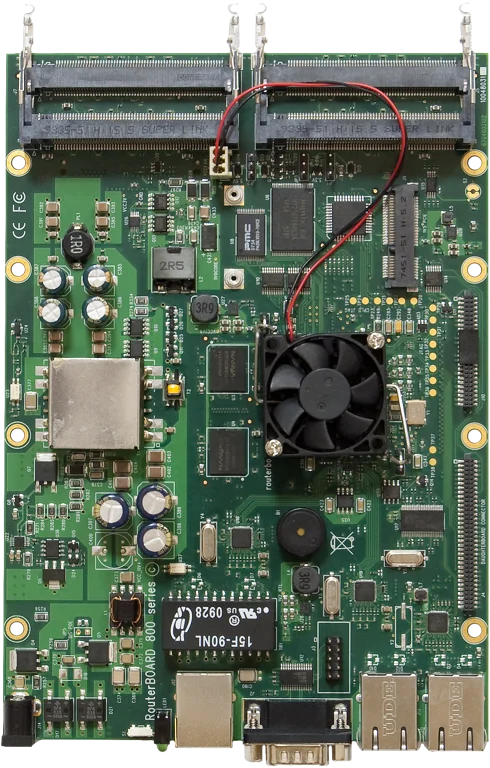

    The RB800 is an advanced high performance wireless platform. It has four miniPCI slots, three Gigabit ethernet ports, two daughterboard connectors (one PCI and one PCI-e), a miniPCI-e slot and a compact flash slot.

    The two daughterboard connectors allow you to expand the number of wired and wireless ports, and the new high power CPU is capable of supporting them all.

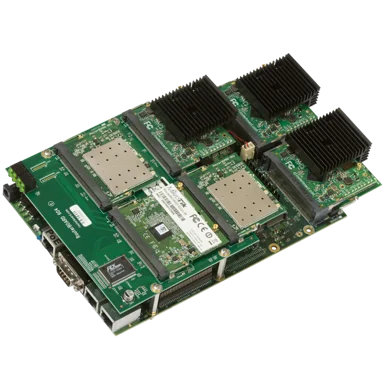

    RB800 has daughterboard connector, so you have a lot of expansion possibilities. You can buy RB502 to add two miniPCI slots, RB604 to add four miniPCI slots or RB816 to add 16 Ethernet ports!

    This is the new definition of wireless networking power. Combined with RouterOS - RB800 is the most powerful and sophisticated wireless router, firewall and bandwidth manager.

     Send purchase questions

    Specifications

    Details
    Product code RB800
    CPU MPC8533EVTALF
    CPU core count 1
    CPU nominal frequency 800 MHz
    Dimensions 14cmx20cm
    RouterOS license 6
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 512 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $359.00

    Powering

    Details
    802.3af support Yes
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 10-57 V
    Max power consumption 15 W
    Cooling type 1 fan
    PoE in 802.3af/at
    PoE in input Voltage 38-57 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 3

    Peripherals

    Details
    Memory card type CF
    Memory Cards 1
    MiniPCI slots 4
    MiniPCI-e slots 1
    Serial console port RS232

    Other

    Details
    CPU temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

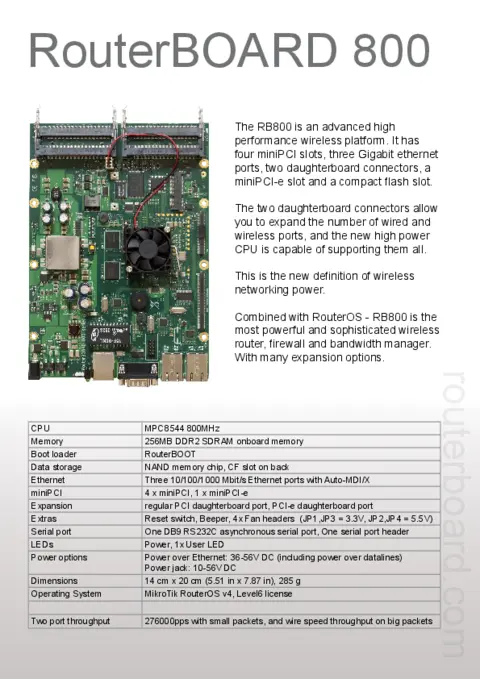

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterBoot firmware Download
    Design Files PDFOpen
    PoE-IN compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    RB800MPC8533 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)243.52,957.1330.41,353.3883.8452.5
    Bridging25 bridge filter rules162.31,971.0185.3759.0187.495.9
    Routingnone (fast path)243.52,957.1330.01,351.7755.4386.8
    Routing25 simple queues205.02,489.5294.41,205.9303.2155.2
    Routing25 ip filter rules121.41,474.3122.9503.4122.662.8
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
