CISCO/Aironet 2.4GHz 11Mbps Wireless Interface

Document revision 22-Mar-2002
This document applies to the MikroTik RouterOS V2.4 and V2.5

Overview

The MikroTik RouterOS supports the following CISCO/Aironet 2.4GHz Wireless ISA/PCI/PC Adapter hardware:

Aironet ISA/PCI/PC4800 2.4GHz DS 11Mbps Wireless LAN Adapters (100mW)
Aironet ISA/PCI/PC4500 2.4GHz DS 2Mbps Wireless LAN Adapters (100mW)
CISCO AIR-PCI340 2.4GHz DS 11Mbps Wireless LAN Adapters (30mW)
CISCO AIR-PCI/PC350/352 2.4GHz DS 11Mbps Wireless LAN Adapters (100mW)

For more information about the CISCO/Aironet PCI/ISA adapter hardware please see the relevant User’s Guides and Technical Reference Manuals in .pdf format:

710-003638a0.pdf for PCI/ISA 4800 and 4500 series adapters
710-004239B0.pdf for PC 4800 and 4500 series adapters

Documentation about CISCO/Aironet Wireless Bridges and Access Points can be found in archives:

AP48MAN.exe for AP4800 Wireless Access Point
BR50MAN.exe for BR500 Wireless Bridge

Contents of the Manual

The following topics are covered in this manual:

Wireless Adapter Hardware and Software Installation
Wireless Interface Configuration
Troubleshooting
Wireless Network Applications

Wireless Adapter Hardware and Software Installation

Software Packages

The MikroTik Router should have the aironet software package installed. The software package file aironet-2.x.y.npk can be downloaded from MikroTik’s web page www.MikroTik.com. To install the package, please upload the correct version file to the router and reboot. Use BINARY mode ftp transfer. After successful installation the package should be listed under the installed software packages list, for example:

[MikroTik] > /sys package print
  # NAME                   VERSION               BUILD-TIME           UNINSTALL
  0 aironet                2.4                   sep/25/2001 05:08:05 no
  1 routing                2.4                   sep/25/2001 05:06:07 no
  2 system                 2.4                   sep/25/2001 05:05:48 no
  3 ppp                    2.4                   sep/25/2001 05:06:35 no
  4 ssh                    2.4                   sep/25/2001 05:08:11 no
  5 pptp                   2.4                   sep/25/2001 05:06:44 no
[MikroTik] >

Software License

The 2.4GHz wireless adapters require the 2.4GHz wireless feature license. One license is for one installation of the MikroTik RouterOS, disregarding how many cards are installed in one PC box. The wireless feature is not included in the Free Demo or Basic Software License. The 2.4GHz Wireless Feature cannot be obtained for the Free Demo License. It can be obtained only together with the Basic Software License.

System Resource Usage

Before installing the wireless adapter, please check the availability of free IRQ's and I/O base addresses:

[MikroTik] > /sys resource irq print
 IRQ USED OWNER
 1   yes  keyboard
 2   yes  APIC
 3   no
 4   yes  serial port
 5   no
 6   no
 7   no
 8   no
 9   no
 10  no
 11  yes  backbone
 12  no
 13  yes  FPU
 14  yes  IDE 1
 15  yes  PCMCIA service
[MikroTik] > /sys resource io print
 PORT-RANGE            OWNER
 20-3F                 APIC
 40-5F                 timer
 60-6F                 keyboard
 80-8F                 DMA
 A0-BF                 APIC
 C0-DF                 DMA
 F0-FF                 FPU
 1F0-1F7               IDE 1
 2F8-2FF               serial port
 3C0-3DF               VGA
 3E0-3E1               PCMCIA service
 3F6-3F6               IDE 1
 3F8-3FF               serial port
 4000-4007             IDE 1
 4008-400F             IDE 2
 6300-631F             backbone
[MikroTik] >

Installing the Wireless Adapter

The basic installation steps of the wireless adapter should be as follows:

Check the system BIOS settings and make sure you do not have the 'PnP OS Installed' set to 'Yes'. If you have this setting, make sure it is set to 'No'.
Check the system BIOS settings for peripheral devices, like, Parallel or Serial communication ports. Disable them, if you plan to use IRQ's assigned to them by the BIOS.
Set the DIP switches on the ISA board according to the following plan:
DIP switch #6 to 'on' (non-PnP mode)
Use the DIP switches #1,2,3 to select the IRQ number Use the DIP switches #4,5 to select the I/O Base Address

Please note, that not all combinations of I/O base addresses and IRQ's may work on your motherboard. It is recommended that you choose one IRQ that is not used in your system, and then try an acceptable I/O base address setting. As it has been observed, the IRQ 5 and I/O 0x300 or 0x180 work in most cases.

Loading the Driver for the Wireless Adapter

PCI and PC (PCMCIA) cards do not require a 'manual' driver loading, since they are recognized automatically by the system and the driver is loaded at the system startup.

The ISA card requires the driver to be loaded by issuing the following command:

[MikroTik]> driver add name=pc-isa io=0x180
[MikroTik]> driver print
Flags: I - invalid, D - dynamic
  #   DRIVER                            IRQ IO         MEMORY     ISDN-PROTOCOL
  0 D PCI NE2000
  1   Aironet ISAxx00                       0x180
[MikroTik] driver>

There can be several reasons for a failure to load the driver:

The driver cannot be loaded because other device uses the requested IRQ.
Try to set different IRQ using the DIP switches.
The requested I/O base address cannot be used on your motherboard.
Try to change the I/O base address using the DIP switches.

Wireless Interface Configuration

If the driver has been loaded successfully (no error messages), and you have the required 2.4GHz Wireless Software License, then the CISCO/Aironet 2.4GHz Wireless interface should appear under the interfaces list with the name pcn, where n is 1,2,... You can change the interface name to a more descriptive one using the 'set' command. To enable the interface, use the 'enable' command:

[MikroTik] interface> print
Flags: X - disabled, D - dynamic
  #   NAME                 MTU   TYPE
  0   backbone             1500  ether
  1 X pc1                  1500  pc
[MikroTik] interface> set 1 name aironet
[MikroTik] interface> enable aironet
[MikroTik] interface> print
Flags: X - disabled, D - dynamic
  #   NAME                 MTU   TYPE
  0   backbone             1500  ether
  1   aironet              1500  pc

More configuration and statistics parameters can be found under the '/interface pc' menu:

[MikroTik] interface> pc
[MikroTik] interface pc> print
Flags: X - disabled
  0   name=aironet mtu=1500 mac-address=00:40:96:37:70:68 arp=enabled
      mode=infrastructure rts-threshold=2312 fragmentation-threshold=2312
      tx-power=100 rx-diversity=right tx-diversity=right long-retry-limit=16
      short-retry-limit=16 frequency=2427MHz bitrate=auto ap1=00:40:96:25:83:63
      ap2=00:40:96:25:83:63 ap3=00:40:96:25:83:63 ap4=00:40:96:25:83:63
      ssid1=tsunami ssid2="" ssid3="" modulation=cck
      client-name=MikroTik_0 beacon-period=100 join-net=10s
      firmware-version=PC4800A 3.85

[MikroTik] interface pc>

Argument description:

number - Interface number in the list
name - Interface name
mtu - Maximum Transmit Unit (256...2048 bytes). Default value is 1500 bytes.
mode - Operation mode of the card (infrastructure / ad-hoc)
rts-threshold - RTS threshold
fragmentation-threshold - Fragmentation threshold
tx-power - Transmit power in mW
rx-diversity - Receive diversity (both / default / left / right)
tx-diversity - Transmit diversity (both / default / left / right)
long-retry-limit - Long retry limit
short-retry-limit - Short retry limit
frequency - Channel frequency (2412MHz / 2422MHz / ... / 2484MHz)
bitrate - Data rate (11Mbit/s / 1Mbit/s / 2Mbit/s / 5.5Mbit/s / auto)
ap1 - Access Point 1
ap2 - Access Point 2
ap3 - Access Point 3
ap4 - Access Point 4
ssid1 - Service Set Identifier 1
ssid2 - Service Set Identifier 2
ssid3 - Service Set Identifier 3
modulation - Modulation mode (cck / default / mbok)
client-name - Client name
join-net - Beaconing period
arp - Address Resolution Protocol (disabled / enabled / proxy-arp)

You can monitor the status of the wireless interface:

[MikroTik] interface pc> monitor 0
              quality: 0
             strength: 0
         current-rate: 11Mbit/s
    current-frequency: 2437MHz
         synchronized: no
           associated: no
                 ssid: tsunami
         access-point: FF:FF:FF:FF:FF:FF
    access-point-name:
         error-number: 0

[MikroTik] interface pc>

If the wireless interface card is not registered to an AP, the green status led is blinking fast.

To set the wireless interface for working with an IEEE 802.11b access point (register to the AP), you should set the following parameters:

The service set identifier. It should match the ssid of the AP. Can be blank, if you want the wireless interface card to register to an AP with any ssid. The ssid will be received from the AP, if the AP is broadcasting its ssid.
The operation mode of the card should be set to 'infrastructure'.
The bitrate of the card should match one of the supported data rates of the AP. Data rate 'auto' should work for most of the cases.

All other parameters can be left as default. To configure the wireless interface for registering to an AP with ssid "mt", it is enough to change the argument value of ssid1 to "mt":

[MikroTik] interface pc> set 0 ssid1 mt
[MikroTik] interface pc> monitor 0
              quality: 63
             strength: 131
         current-rate: 11Mbit/s
    current-frequency: 2412MHz
         synchronized: yes
           associated: yes
                 ssid: mt
         access-point: 00:40:96:00:06:72
    access-point-name: Gulf
         error-number: 0

[MikroTik] interface pc>

If the wireless interface card is registered to an AP, the green status led is blinking slow.

Wireless Troubleshooting

The pc interface does not show up under the interfaces list
Obtain the required license for 2.4GHz wireless feature.
The wireless card does not register to the AP
Check the cabling and antenna alignment.

Wireless Network Applications

Two possible wireless network configurations are discussed in the following examples:

Point-to-Multipoint (Wireless Infrastructure)
Point-to-Point (Peer-to-Peer, or Ad-Hoc Wireless LAN)

Point-to-Multipoint Wireless LAN

Let us consider the following network setup with CISCO/Aironet Wireless Access Point as a base station and MikroTik Wireless Router as a client:

Point-to-Multipoint

The access point is connected to the wired network's HUB and has IP address from the network 10.1.1.0/24. The minimum configuration required for the AP is:

Setting the Service Set Identifier (up to 32 alphanumeric characters). In our case we use ssid "mt".
Setting the allowed data rates at 1-11Mbps, and the basic rate at 1Mbps.
Choosing the frequency, in our case we use 2442MHz.
(For CISCO/Aironet Bridges only) Set Configuration/Radio/Extended/Bridge/mode=access_point. If you leave it to 'bridge_only', it wont register clients.
Setting the identity parameters Configuration/Ident: Inaddr, Inmask, and Gateway. These are required if you want to access the AP remotely using telnet or http.

Reminder! Please note, that the AP is not a router! It has just one network address, and is just like any host on the network. It resembles a wireless-to-Ethernet HUB or bridge. The AP does not route the IP traffic! There is no need to set up the routing table under Configuration/Ident/Routing.

The minimum configuration for the MikroTik router's CISCO/Aironet wireless interface is:

Setting the Service Set Identifier to that of the AP, i.e., "mt"
Setting the Operation Mode to "infrastructure"

[MikroTik] interface pc> set 0 ssid1 mt mode infrastructure
[MikroTik] interface pc> monitor 0
              quality: 62
             strength: 129
         current-rate: 11Mbit/s
    current-frequency: 2442MHz
         synchronized: yes
           associated: yes
                 ssid: mt
         access-point: 00:40:96:00:06:72
    access-point-name: Gulf
         error-number: 0
[MikroTik] interface pc>

The frequency argument does not have any meaning, since the frequency of the AP is used. The IP addresses assigned to the wireless interface should be from the network 10.1.1.0/24, e.g.:

[MikroTik] ip address> add address 10.1.1.12/24 interface aironet
[MikroTik] ip address> print
Flags: X - disabled, I - invalid, D - dynamic
  #   ADDRESS            NETWORK         BROADCAST       INTERFACE
  0   10.1.1.12/24       10.1.1.0        10.1.1.255      aironet
  1   192.168.0.254/24   192.168.0.0     192.168.0.255   Local
[MikroTik] ip address>

The default route should be set to the gateway router 10.1.1.254 (not the AP 10.1.1.250 !):

[MikroTik] ip route> add gateway=10.1.1.254
[MikroTik] ip route> print
Flags: X - disabled, I - invalid, D - dynamic, R - rejected
  #    TYPE    DST-ADDRESS        NEXTHOP-S... GATEWAY     DISTANCE INTERFACE
  0    static  0.0.0.0/0          A            10.1.1.254  1        aironet
  1 D  connect 192.168.0.0/24     A            0.0.0.0     0        Local
  2 D  connect 10.1.1.0/24        A            0.0.0.0     0        aironet
[MikroTik] ip route>

Point-to-Point Wireless LAN

Point-to-point connections using two wireless clients require the wireless cards to operate in ad-hoc mode. This mode does not provide the required timing for the cases of long distance (over 20km) links. Thus, the performance of such links is very poor on long distances, and use of infrastructure mode is required, where a wireless client registers to an access point or bridge.

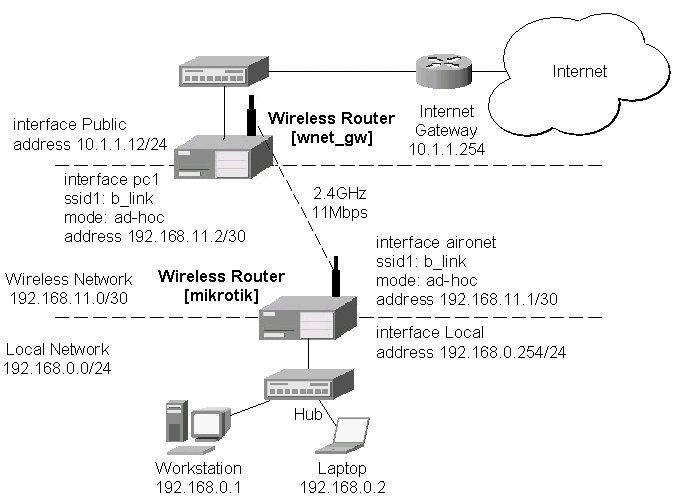

Let us consider the following point-to-point wireless network setup with two MikroTik Wireless Routers:

Point-to-Point

To establish a point-to-point link, the configuration of the wireless interface should be as follows:

A unique Service Set Identificator should be chosen for both ends, say "b_link"
A channel frequency should be selected for the link, say 2412MHz
The operation mode should be set to 'ad-hoc'
One of the units (slave) should have wireless interface argument 'join-net' set to 0s (never create a network), the other unit (master) should be set to 1s or whatever, say 10s. This will enable the master unit to create a network and register the slave unit to it.

The following command should be issued to change the settings for the pc interface of the master unit:

[MikroTik] interface pc> set 0 mode ad-hoc ssid1 b_link frequency 2442MHz bitrate auto
[MikroTik] interface pc> monitor 0
              quality: 0
             strength: 0
         current-rate: 11Mbit/s
    current-frequency: 2412MHz
         synchronized: no
           associated: no
                 ssid: b_link
         access-point: FF:FF:FF:FF:FF:FF
    access-point-name:
         error-number: 0
[MikroTik] interface pc>

For 10 seconds (this is set by the argument join-net) the wireless card is looking for a network to join. The status of the card is not synchronized, and the green status light is blinking fast. If the card cannot find a network, the card creates its own network. The status of the card becomes 'synchronized', and the green status led becomes solid. The monitor command shows the new status and the MAC address generated:

[MikroTik] interface pc> monitor 0
              quality: 62
             strength: 129
         current-rate: 11Mbit/s
    current-frequency: 2412MHz
         synchronized: yes
           associated: no
                 ssid: b_link
         access-point: 16:01:0B:02:17:00
    access-point-name:
         error-number: 0
[MikroTik] interface pc>

The other router of the point-to-point link requires the operation mode set to 'ad-hoc', the System Service Identificator set to "b_link", and the channel frequency set to 2412MHz. If the radios are able to establish RF connection, the status of the card should become 'synchronized', and the green status led become solid immediately after entering the command:

[wnet_gw] interface pc> set 0 mode ad-hoc ssid1 b_link frequency 2412MHz bitrate auto
[wnet_gw] interface pc> monitor 0
              quality: 58
             strength: 122
         current-rate: 11Mbit/s
    current-frequency: 2412MHz
         synchronized: yes
           associated: no
                 ssid: b_link
         access-point: 16:01:0B:02:17:00
    access-point-name:
         error-number: 0
[wnet_gw] interface pc>

As we see, the MAC address under the 'access-point' parameter is the same as generated on the first router.

If desired, IP addresses can be assigned to the wireless interfaces of the pint-to-point link routers using a smaller subnet, say 30-bit one:

[MikroTik] ip address> add address 192.168.11.1/30 interface aironet
[MikroTik] ip address> print
Flags: X - disabled, I - invalid, D - dynamic
  #   ADDRESS            NETWORK         BROADCAST       INTERFACE
  0   192.168.11.1/30    192.168.11.0    192.168.11.3    aironet
  1   192.168.0.254/24   192.168.0.0     192.168.0.255   Local
[MikroTik] ip address>

The second router will have address 192.168.11.2. The network connectivity can be tested by using ping or bandwidth test:

[wnet_gw] ip address> add address 192.168.11.2/30 interface pc1
[wnet_gw] ip address> print
Flags: X - disabled, I - invalid, D - dynamic
  #   ADDRESS            NETWORK         BROADCAST       INTERFACE
  0   192.168.11.2/30    192.168.11.0    192.168.11.3    pc1
  1   10.1.1.12/24       10.1.1.0        10.1.1.255      Public
[wnet_gw] ip address> /ping 192.168.11.1
192.168.11.1 pong: ttl=255 time=3 ms
192.168.11.1 pong: ttl=255 time=1 ms
192.168.11.1 pong: ttl=255 time=1 ms
192.168.11.1 pong: ttl=255 ping interrupted
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 1/1.5/3 ms
interrupted
[wnet_gw] ip address> /tool btest 192.168.11.1 protocol tcp
connecting
current = 4.6Mbps   10secavg = 4.6Mbps   totalavg = 4.6Mbps
current = 4.7Mbps   10secavg = 4.6Mbps   totalavg = 4.6Mbps
current = 4.7Mbps   10secavg = 4.6Mbps   totalavg = 4.6Mbps
current = 4.3Mbps   10secavg = 4.6Mbps   totalavg = 4.6Mbps
current = 4.5Mbps   10secavg = 4.5Mbps   totalavg = 4.5Mbps
current = 4.6Mbps   10secavg = 4.5Mbps   totalavg = 4.5Mbps
[wnet_gw] ip address> /tool btest 192.168.12.1 protocol udp size 1500
connecting
current = 1500.0kbps   10secavg = 1500.0kbps   totalavg = 1500.0kbps
current = 2.0Mbps   10secavg = 1775.3kbps   totalavg = 1775.3kbps
current = 2.9Mbps   10secavg = 2.1Mbps   totalavg = 2.1Mbps
current = 4.4Mbps   10secavg = 2.7Mbps   totalavg = 2.7Mbps
current = 5.6Mbps   10secavg = 3.3Mbps   totalavg = 3.3Mbps
current = 5.6Mbps   10secavg = 3.6Mbps   totalavg = 3.6Mbps
current = 5.6Mbps   10secavg = 3.9Mbps   totalavg = 3.9Mbps
current = 5.6Mbps   10secavg = 4.1Mbps   totalavg = 4.1Mbps
[wnet_gw] ip address>
